Ultra-narrow frame screen Woven sound-permeable picture frame curtain
BJ-CK/BT

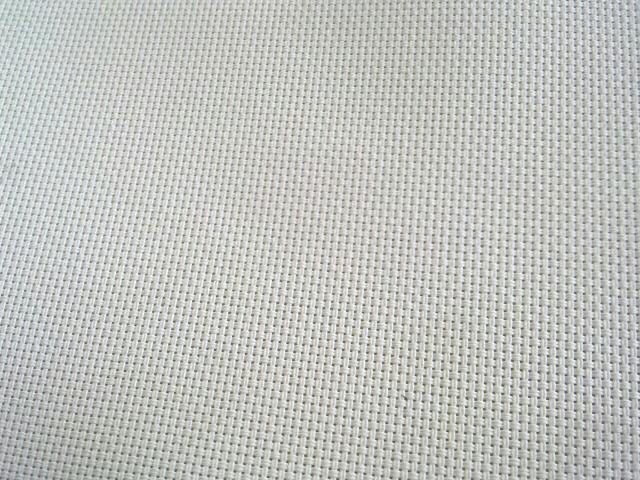

This straight weave acoustic transparent screen features a 10×40mm slim aluminum frame for a frameless look, is ideal for home theaters with behind-screen speakers, and maintains a flat, wrinkle-free surface.
Delivery
T/T、L/C
minimum order
50 pieces
Supply Ability
7-15Workingpieces / Day
Country of Origin
Guanazhou.China
Quantity:
The four edges of the screen adopt a spring tension structure, with the springs evenly applying force to all four edges to pull the screen to a horizontal state, avoiding the ripple phenomenon that occurs with common methods. This more perfectly demonstrates the HD projection effect.
The seamless ladder-style dustproof design frame, with its robust double-link corner installation method, effectively eliminates any concerns related to installation. The unique wall-mounted fixed installation structure makes disassembly and assembly more time-saving, labor-saving, and efficient.
Equipped with installation hangers, it is easy to install without damaging the original decoration. The installation process is simple and easy to operate.
The seamless ladder-style dustproof design frame, with its robust double-link corner installation method, effectively eliminates any concerns related to installation. The unique wall-mounted fixed installation structure makes disassembly and assembly more time-saving, labor-saving, and efficient.
Equipped with installation hangers, it is easy to install without damaging the original decoration. The installation process is simple and easy to operate.
Screen parameters:
Projection method: front projection
Uniformity: 100%
Sound attenuation: The difference between the sound attenuation at BKHz and 12.5KHz and that at 500Hz is respectively less than or equal to 3.5dB and 5dB
Optical gain: 1.2
Horizontal viewing angle: 175°
Vertical viewing angle: 170°
Flame retardant performance: Class B1
The color reproduction performance is good, with the chromaticity of reflected light consistent with that of incident light
Screen resolution ≧ 110 lines per millimeter
The color temperature difference is 5400K+100K
Thickness: 0.35mm
