High-definition nano soft white and soft gray frame screen
Product Features
Adopting a flexible HD screen imported from Germany, it boasts high contrast and high color saturation, fully restoring vivid images with a wide viewing angle.It features fire resistance, flame retardancy, and mold resistance
The frame is made of high-grade aviation aluminum and integrally stretched and formed. The surface is treated with high-quality pressure-resistant flocking technology, and multiple frame colors are available, making the appearance fashionable, elegant, and stylish
Based on the usage environment, one can choose between a flat or curved structure, with customizable dimensions
The four edges of the screen are designed with a spring tension structure, which evenly distributes the force across the four edges to level the screen surface, effectively avoiding the ripple effect often seen in conventional methods. This design more perfectly showcases the high-definition projection effect.
The frame features a seamless ladder-style dustproof design, with a secure double-link corner installation method that effectively eliminates any concerns regarding installation. The unique wall-mounted fixed installation structure makes disassembly and assembly more time-saving, labor-saving, and efficient
The installation of the hanging parts is easy, without damaging the original decoration. The installation process is straightforward and the operation is simple

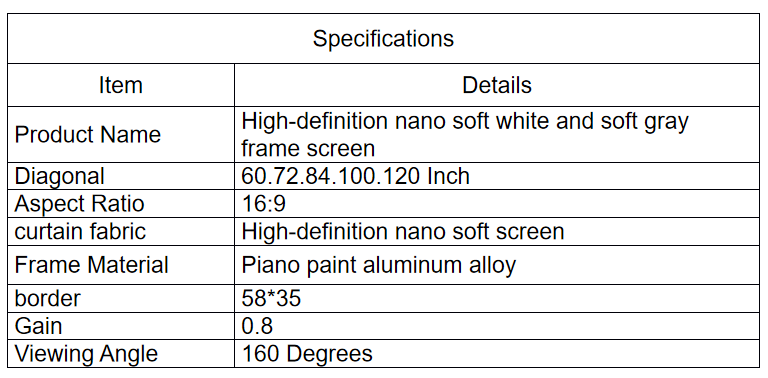

Screen parameters:
Projection method: front projection
Roughness:<18μm
Uniformity: 99.9%
Optical gain: 0.9 -1.2
Horizontal viewing angle: 175°
Vertical viewing angle: 175°
Flame retardant performance: (UL94 V-0 level)
Good color reproduction performance, with reflected light having the same chromaticity as incident light
Screen resolution ≧125 lines per mm
Color temperature difference: 5400K+100K
Tensile strength: maximum 160 kg/cm², average 150 kg/cm²
Tear strength: maximum 95 kg/mm, average 90 kg/mm
Expansion rate: maximum 20%, average 15%
Heat shrinkage: 10%
Thickness: 0.28mm
